Rated Input Voltage
|
AC 400V±15%
|
|
Rated output Voltage
|
AC 400V±15%
|
|
Rated Input/output Frequency
|
50Hz
|
|
Electric Power
|
Three phase
|
|
Max. Output Current
|
16A
|
|
Max. Output Power
|
11KW
|
|
RCD
|
Integrated 6mA DC + 30mA AC leakage detection
|
|
Cable
|
5 meter (Customizable) TPU cable
|
|
Connector Type
|
Type 2 IEC62196-2
|
|
Cable Holder
|
With
|
|
|
Display
|
LCD screen shows charging status
|
|
Connectivity
|
Bluetooth
|
|
Start Method
|
RFID
|
|
|
Leakage current protection, Over current protection(OCP)
|
|
Ground protection, over/under voltage protection (OVP/UVP)
|
|
Short circuit protection, over temp protection(OTP)
|
|
Lightning protection, flame retardant protection
|
|
Surge protection, over load protection
|
|
|
Operating temperature
|
-30℃-+70℃
|
|
Relative Humidity
|
0-95% no condensation
|
|
Maximum Altitude
|
2000m
|
|
Protection Class
|
IP54
|
|
Cooling
|
Natural air cooling
|
|
|
Dimension (L/W/D)
|
230x109x385 mm
|
|
G.W
|
5KG
|
|
Cabinet Material
|
ABS+PC
|
|
Installation Method
|

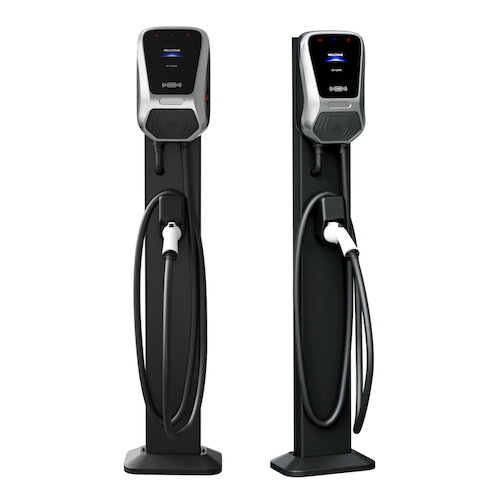

Floor mounted
|
|
Certificates
|
CE
|
