22kw 3 Phase 32a AC Ev Charger Type2 Electric Car Ev Charging Point With LCD

  • 22KW 3 phase 32A EV Wallbox
  • High Compatibility
  • Multiple safety protection
  • Easy to install, simple to operate

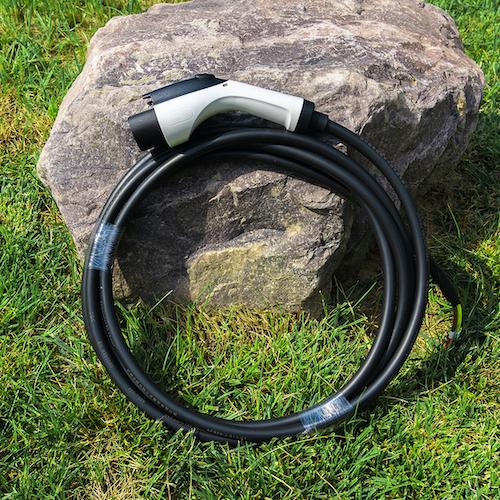

  • 5m TPU cable (Lenght customized)
  • LCD show charging status in real time
  • IP54 high grade waterproof & dustproof
  • Item NO. : CS1C-22KW-X1

  • Order(MOQ): 1 pcs.

  • Color : Black or customized

  • Lead Time : 3~15 working days

  • Warranty : 3 years

  • Certificates : CE

  • OEM : Available

  • Features
  • Specifications
  • Video








Input & Output
Rated Input Voltage
AC 400V±15%
Rated output Voltage
AC 400V±15%
Rated Input/output Frequency
50Hz
Electric Power
Three phase
Max. Output Current
32A
Max. Output Power
22KW
RCD
Integrated 6mA DC + 30mA AC leakage detection
Cable
5 meter (Customizable) TPU cable
Connector Type
Type 2 IEC62196-2
Cable Holder
With


UI & Control
Display
LCD screen shows charging status
Connectivity
Bluetooth
Start Method
RFID




Safety
Leakage current protection, Over current protection(OCP)
Ground protection, over/under voltage protection (OVP/UVP)
Short circuit protection, over temp protection(OTP)
Lightning protection, flame retardant protection
Surge protection, over load protection




Working Environment
Operating temperature
-30℃-+70℃
Relative Humidity
0-95% no condensation
Maximum Altitude
2000m
Protection Class
IP54
Cooling
Natural air cooling




Others
Dimension (L/W/D)
230x109x385 mm
G.W
5KG
Cabinet Material
ABS+PC
Installation Method
Wall mounted
Certificates
CE
