As an ultimate solution to the problem of finding parking spaces, Dashou Parking Guidance and Information System (PGI) has been specially designed based on Ultrasonic detection and RS485 communication technology. The concept of the system is to pinpoint unoccupied parking space and lead drivers to park in no time.
Item NO. : Ultrasonic Parking Guidance System
Order(MOQ): 1
Product Origin : China
Shipping Port : Xiamen
Lead Time : 7~15 working days
Warranty : 1 year
OEM : Available
Split Ultrasonic Sensor and Light Parking Guidance and Information System
Parking Guidance and Information System (PGI) is a ideal solution of helping parkers to find a vacant parking space in no time. The ultrasonic sensor and Bay Indicator is split. Outdoor LED Display is installed at entrance to show quantity of vacant spaces in each floor, while several Indoor LED Displays throughout each floor show parkers quantity of vacant spaces in each floor and area, and show the right direction to vacant spaces, finally parkers will find a vacant space by seeing status (green/blue or red) of bay LED indicator right over each parking space. Typically PGS is installed at indoor car park of shopping mall, airport, hospital etc.

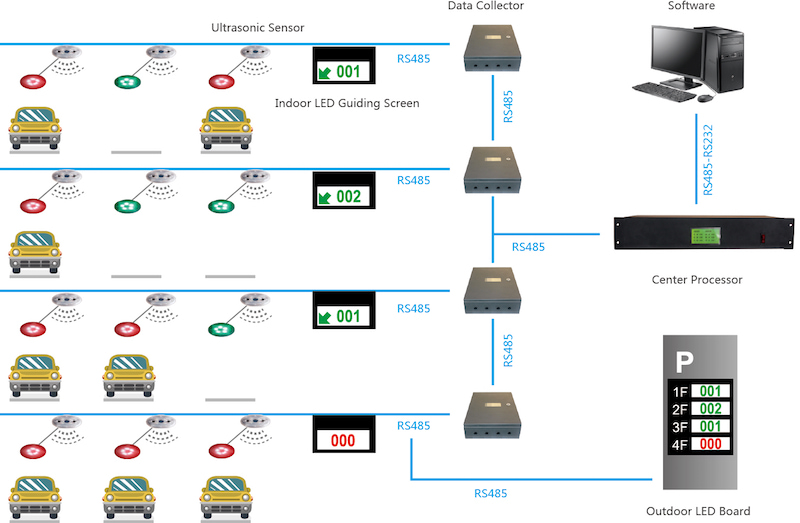

| ① Ultrasonic Sensor | ⑤ Data Collector |
| ② LED Bay Indicator | ⑥ Central Processor |
| ③ Indoor LED Display | ⑦ Management Software |
| ④ Outdoor LED Display |
⑧ Other accessories |

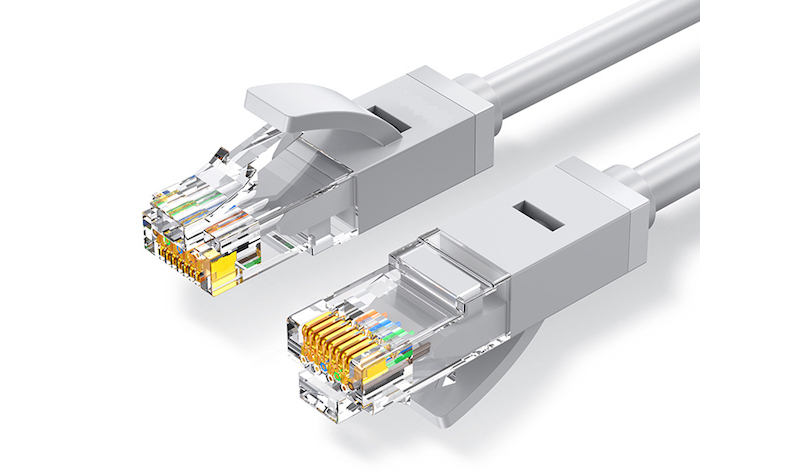

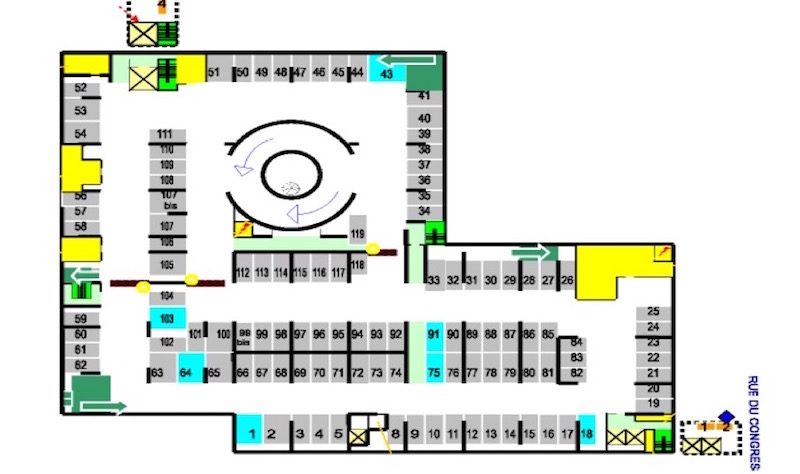

Just one cable (CAT 5) is used to connect all devices of parking guidance system. You cannot imagine any easier way but just enjoy the simple happiness and big convenience.
Pre-Configuration In Factory
All the configurations of hardware & software have already been done in the factory, all you have to do is to plug and play. Actually our customers are extremely happy about this feature.

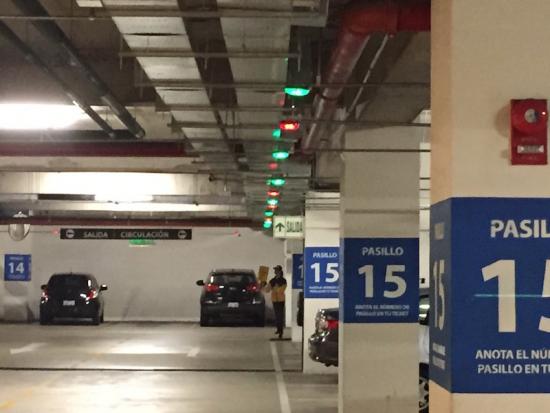

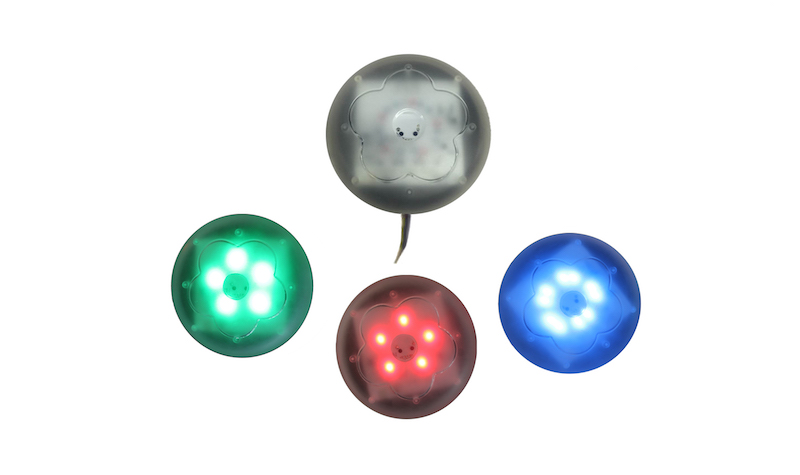

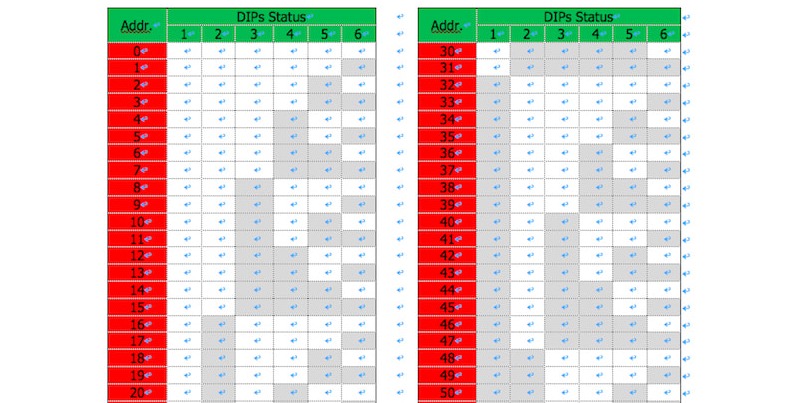

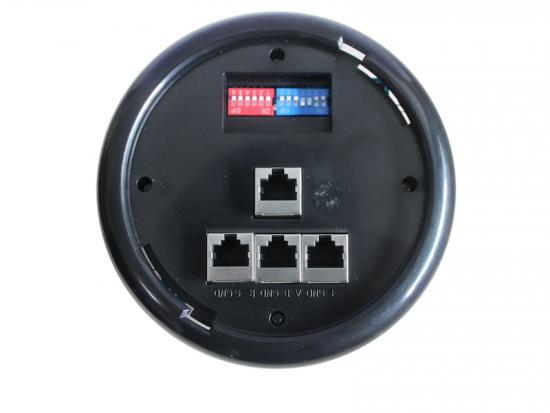

Ultrasonic sensor is installed right over middle of bay, to detect the presence of the vehicles.High brightness LED Bay indicator is to show occupancy status of a parking space by different color illumination:
Outdoor & Indoor LED Display

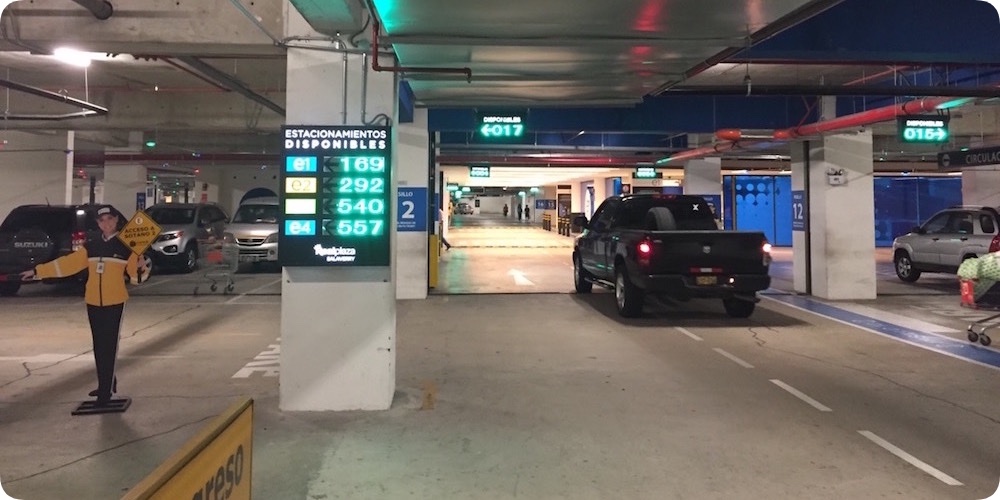

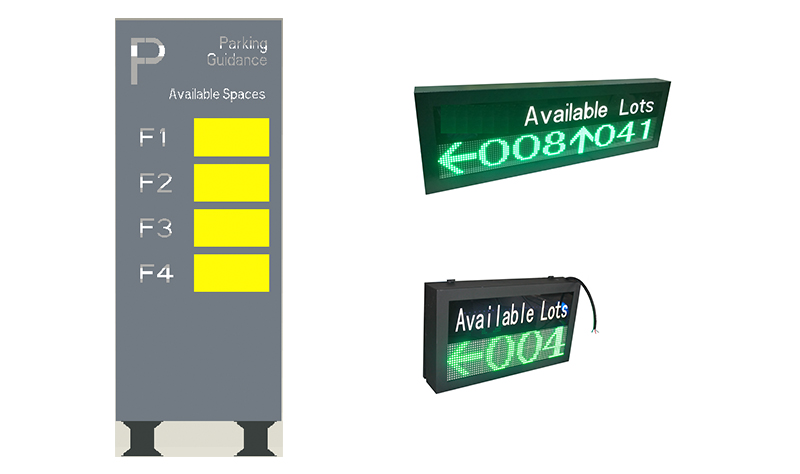

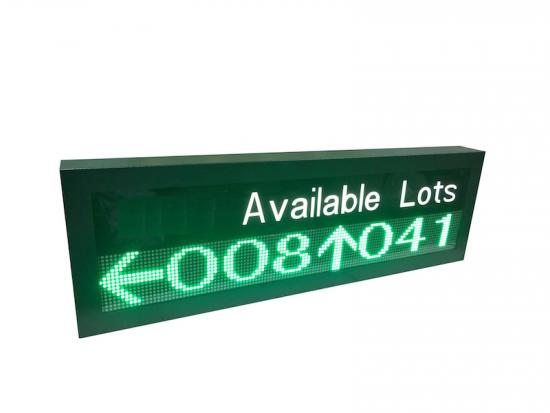

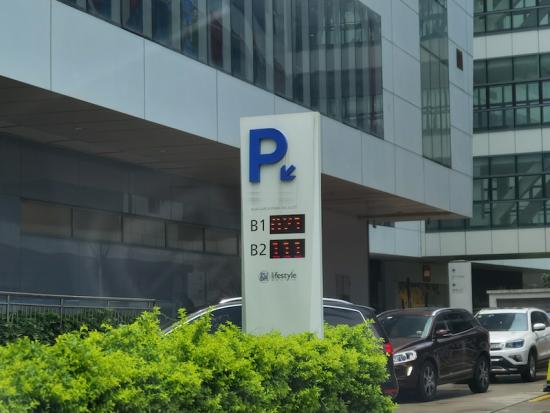

Outdoor LED Display is installed at entrance to show how many parking spaces are avaiable in each level ; Indoor LED Display is installed at conrner & intersections to show quantity of vacant spaces in each area and floor, and guides you the right direction to find an vacant parking space in no time. Both outdoor/indoor LED Display are IP65 grade.

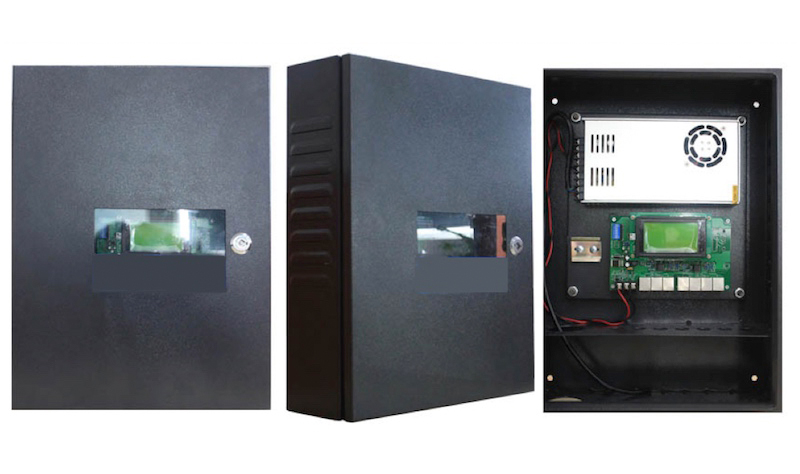

Data Collector is a bridge which connects Central Processor to Ultrasonic Sensors & LED Displays. It collects and send information of sensor to Central Processor for final processing, and also transmit availability information from Central Processor to LED Displays. One Data Collector works with Max. 60 pcs. of Ultrasonic Sensors and 20 pcs.of LED displays. LCD on the Data Collector shows the status of each sensor.

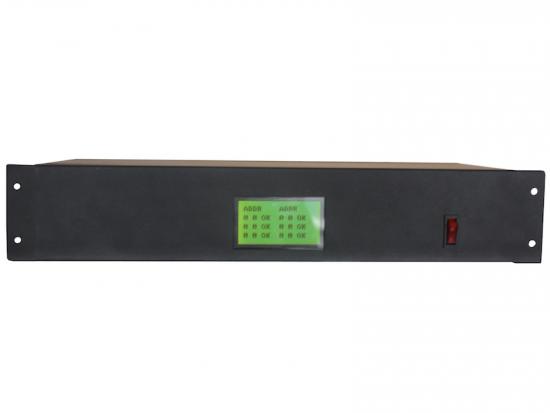

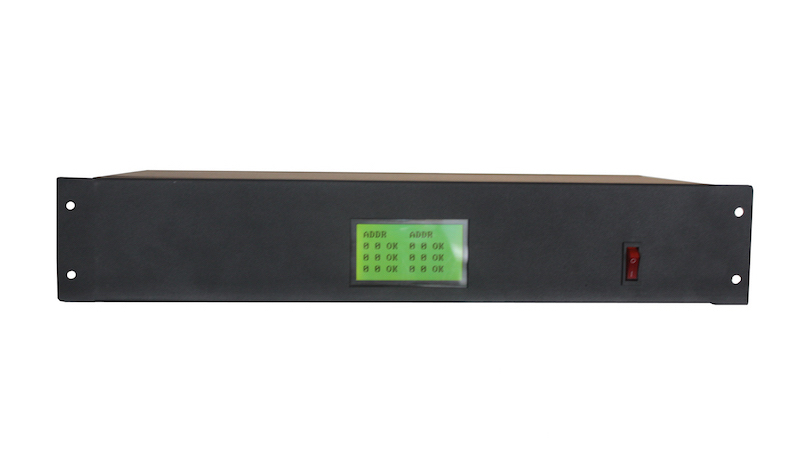

Central Processor is the core of Parking Information System. It analyses data, feedbacks the data to Management Software database, and transmits data to be shown on LED displays. A Central Processor manages Max. 60 pcs. of Data Collectors. Its LCD screen clearly shows the communication status, saying it shows OK if communication is normal, otherwise it shows XX
It show the occupancy status of parking spaces in real-time basis and provides various statistic reports which help you improve car park management. Parking Guidance System is a standalone system workable without management software.
|
Specification - Ultrasonic Sensor |
| Dimension | 13cm(D) * 6cm(H) | Weight | 0.15KG |
| Working Voltage | DC24V | Peak Current | 70mA |
| Frequency | 40HKz | Sensitivity | ›-75dB |
| Communication Mode | RS485 | Transmission Distance | ‹1000m |
| Detection Angle | ‹30° | Detection Distance | 0.5~4m |
| Working Temperature | -25~75°C | Error | ±0.2m |
| Color |
Front: Frosted White Back: Black |
Housing | ABS |
|
Specification - Bay LED Indicator |
| Dimension | 13cm(D) * 6cm(H) | Weight | 0.15KG |
| Working Voltage | DC24V | Peak Current | 70mA |
| Communication Mode | RS485 | Working Temperature | -25~75°C |
| Color |
Front: Frosted White Back: Black |
Housing | ABS |
|
Specification - LED Display |
| Working Voltage | DC5V | Frequency | 50~60Hz |
| Communication Mode | RS485 | Transmission Distance | ‹1000m |
| LED Screen Size | ￠5 12cm(24cm)x48cm (Indoor) |
PH10 16cm*32cm (Outdoor) |
|
| Board Size |
53cmx28cmx12cm (Indoor, Single-way) 106cmx28cmx12cm (Indoor, Double-way) 159cmx28cmx12cm (Indoor, Triple-way) |
Custimizable (Outdoor) | |
|
Specification - Data Collector |
| Dimension | 43*34*12cm | Weight | 8.75KG |
| Working Voltage | DC24V | Peak Current | 70mA |
| Frequency | 4800Mps | Transmission Distance | ‹1000m |
| Communication Mode | RS485 | Housing | Iron |
| Working Temperature | -25~75°C | Color | Frosted black |
|
Specification - Central Processor |
| Dimension | 48*20*9cm | Weight | 3.7KG |
| Working Voltage | DC24V | Peak Current | 35mA |
| Frequency | 4800Mps | Transmission Distance | ‹1000m |
| Communication Mode | RS485 | Housing | Iron |
| Working Temperature | -25~75°C | Color | Black |
|
Specification - Software Required PC |
| Brand | Dell or Lenovo recommended | Display | 17 ch LED |
| Memory | 1G or above | CD ROM | Required |
| CPU | Intel Pentium 1.8G or above | USB Port | Recommended |
| HD | 80G or above | OS | Windows 7, Windows 10 |
| Database | Microsoft SQL Server 2008 R2 | Others | At least one RS232 Serial port |
