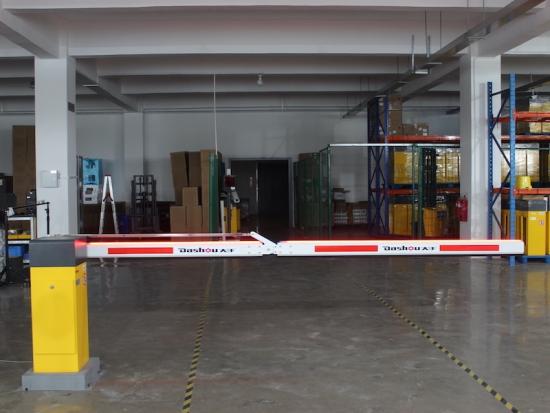

10 Million MCBF BLDC Motor Folding Arm Barrier Gate

10 Million MCBF BLDC Motor Folding Arm Barrier Gate

• Control & Program Barrier By Cellphone ∗



  Thanks to WIFI technology, from your cellphone you can control the Folding Barrier Gate, and program the barrier such as opening/closing time setting and other parameters setting etc. *Dashou App should be installed into your cellphone, also Dashou WIFI module shall be connected to barrier controller board. View the video on the left side

•
•

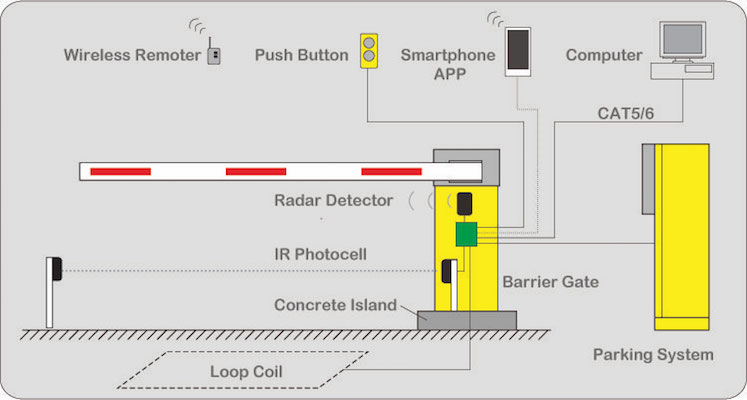

  TCP/IP Interface for Easy Integration ∗



  The Folding Boom Barrier controller has TCP/IP RJ45 interface, which allow you to integrate the barrier with your own system easily, thus you can control and remotely monitor the barrier status by your own system from anywhere. *Dashou Ethernet module should be connected to the barrier controller, and communication protocol will be provided by Dashou

•
•
•

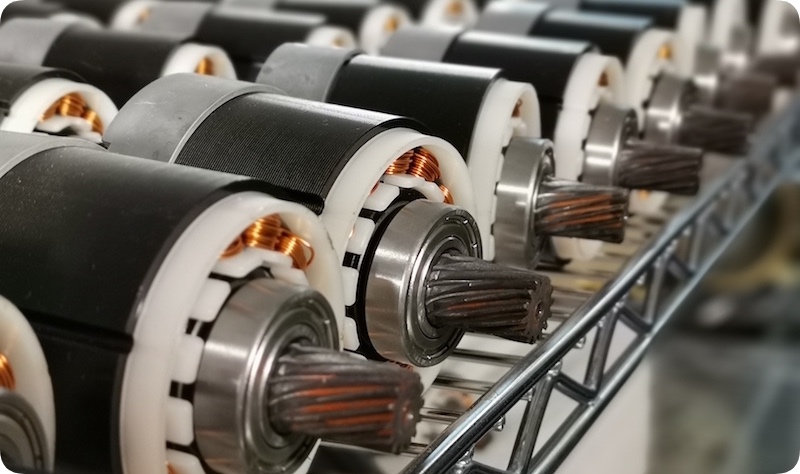

  10 Million MCBF Free-maintenance DC Motor



  Free-maintenance DC24V brushless servo torque motor ensures more than 10 million cycles MCBF long life span; Meanwhile 100% duty cycle helps the Folding Boom Gate continuously work well at 24*7 hours; Max. 50W super low consumption of the motor means less power but outputs super strong torque

•
•

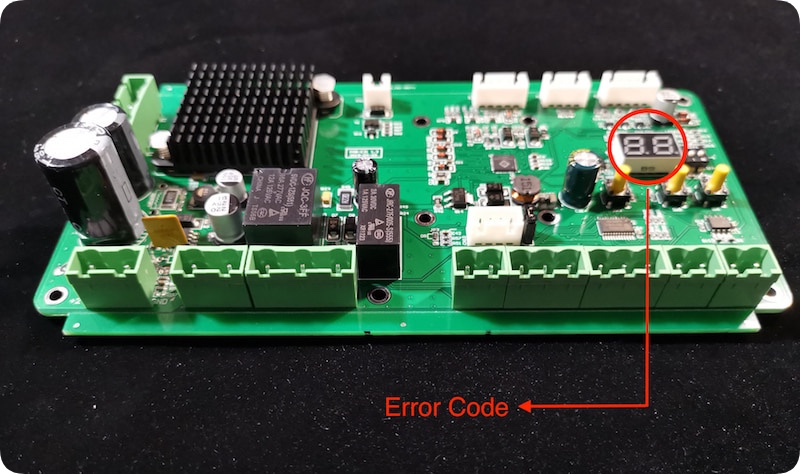

  Automatically Check Status & Report Error



  Folding Parking Barrier will automatically check its operation status by itself during working, and errors code will be shown on the LED tube if any problem occurred. This helps you quickly find out the problem and fix it accordingly. List of error code will be found on the User Manual.



•
•
• Arm Auto-reverse On Obstacles For Safety



  While Articulated Arm moving down, it will reverse automatically and immediately if it hit a car or pedestrian, which protects the car or person. The sensitivity is adjustable. This function is not working when the angle is <9°both in vertical and horizontal position. View the video on the left side

•
•
• Arm Direction Is Exchangeable Easily



  In the past you have to keep stock for barriers with different arm direction because different sites may require different arm direction. But now you can change the arm direction easily at site without replacing any parts. View video on the right side

•
• Arm automatically open when power off ∗



  Whatever the barrier arm in any position, arm will automatically open up fully if the power is off. This is very useful for a unmanned parking lots, when power is down, vehicles can leave the car park without waiting for someone to manually open the Articulated Parking Barrier. Off course you can shut down this function. See video on the right side

Other Features

• Automatically close in given time (Programmable)
• Automatically close or open by loop detector ∗
• Solar panel or lead-acid cell for backup power supply ∗

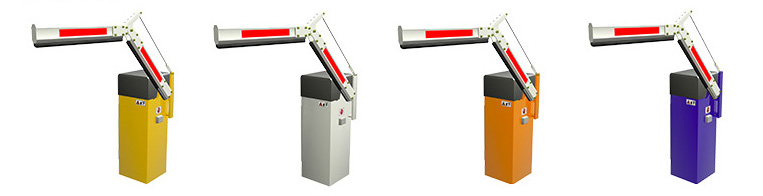

• Different types of arm can be exchanged without replacing any part

Above feaures & functions which marked in ∗ are optional

For more features & functions, Pease refer to the brochure.
